Blanketing is also called as "Padding” is the process permeating and maintaining gas to the empty or vapour space in a container. This is done by providing a way of allowing the blanketing gas into the system and another way to vent the gas for avoiding the over pressurization of the container.

• If the media in the tank is combustible, Blanketing removes the oxygen required for combustion.
• Blanketing protects food, other substances form oxidation, contamination or evaporation

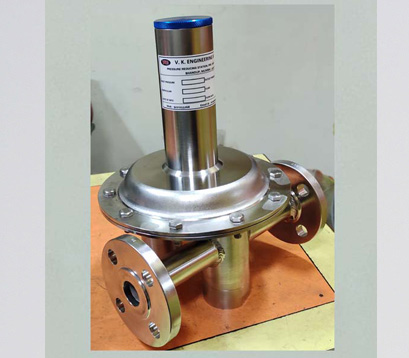

Nitrogen blanketing regulator reduces the intermediate Nitrogen pressure to a very low blanketing pressure. The blanketing regulator is self-actuating downstream pressure regulator meant for reducing to the desired blanketing pressure inside the container.
When the pressure inside the container drops below the set pressure the blanketing regulator opens and allows ingress of Nitrogen in the container affecting rise in dropped pressure. As soon as the pressure inside the container is made up and reaches to the desired value the regulator closes affecting stoppage of additional nitrogen in the container

DESIGN SPECIFICATION :
• System Design - As per API 2000 guidelines
• Type - Pressure sensitive device
• Operation - Self-actuated
• Body MOC - CS - WCB/A105, AISI 304/CF8, AISI 316/CF8M & other on request
• Trim MOC - AISI 304, AISI 316, Monel, Hastelloy & other on request
• End Connections - 15NB 150#, 25NB 150#, 40NB 150#, 50NB 150#,
• Inlet pressure range - 6 to 0.5 Bar
• Outlet Pressure range - 50 to 1000 MMWC
• Flow rate - 4 to 40 Nm3/hr
• Leakage Class - VI
• Make - VKE

Our Back Pressure Valve is fitted in vessels to prevent an undue rise in pressure, the Back pressure valve gets actuated and there is a rapid opening or pop up action to release the increased pressure.
Used in various industries, our Back pressure valve is available in sizes to suit the requirements of our clients.
DESIGN SPECIFICATION :
• System Design - As per API 2000 guidelines
• Type - Pressure sensitive device
• Operation - Self-actuated
• Body MOC - CS - WCB/A105, AISI 304/CF8, AISI 316/CF8M & other on request
• Trim MOC - AISI 304, AISI 316, Monel, Hastelloy & other on request End Connections - 15NB 150#, 25NB 150#, 40NB 150#, 50NB 150#.
• Pressure range – 150 – 350 MMWC
• Make - VKE
