We are best Nitrogen Blanketing System Manufacturers. We are leading manufacturers of Nitrogen Blanketing System Manufacturers unions. We are best providers Nitrogen Blanketing System Manufacturers joints.
V. K. Engineering works making high-speed Nitrogen Blanketing System Manufacturers with a cut off characteristics which enables the seal faces to loose contact in the absence of pressurized liquid flow. V. K. Engineering works manufacturer of Nitrogen Blanketing System Manufacturers - Nitrogen Blanketing System Manufacturers , water rotary union, air rotary union We are one of the best leading rotary joints manufacturing finest quality Rotary joints for continuous coolant service in India. we always supplier premium quality Nitrogen Blanketing System Manufacturers for customers.

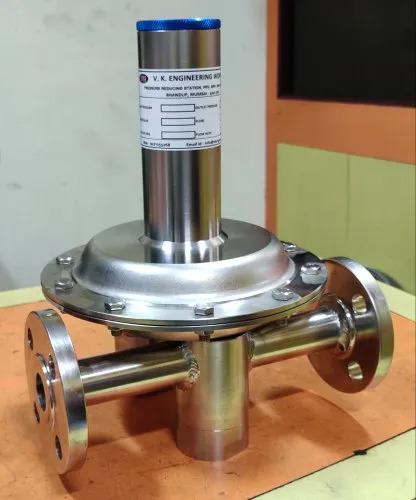

Nitrogen blanketing regulator reduces the intermediate Nitrogen pressure to a very low blanketing pressure. The blanketing regulator is self-actuating downstream pressure regulator meant for reducing to the desired blanketing pressure inside the container. When the pressure inside the container drops below the set pressure the blanketing regulator opens and allows ingress of Nitrogen in the container affecting rise in dropped pressure. As soon as the pressure inside the container is made up and reaches to the desired value the regulator closes affecting stoppage of additional nitrogen in the container

DESIGN SPECIFICATION
System Design - As per API 2000 guidelines
Type - Pressure sensitive device
Operation - Self-actuated
Body MOC - CS - WCB/A105, AISI 304/CF8, AISI 316/CF8M & other on request
Trim MOC - AISI 304, AISI 316, Monel, Hastelloy & other on request
End Connections - 15NB 150#, 25NB 150#, 40NB 150#, 50NB 150#, 65NB 150 #, 80NB 150#
Inlet pressure range - 5 to 0.5 Bar
Outlet Pressure range - 30 to 1000 MMWC
Flow rate - 4 to 40 Nm3/hr
